Description

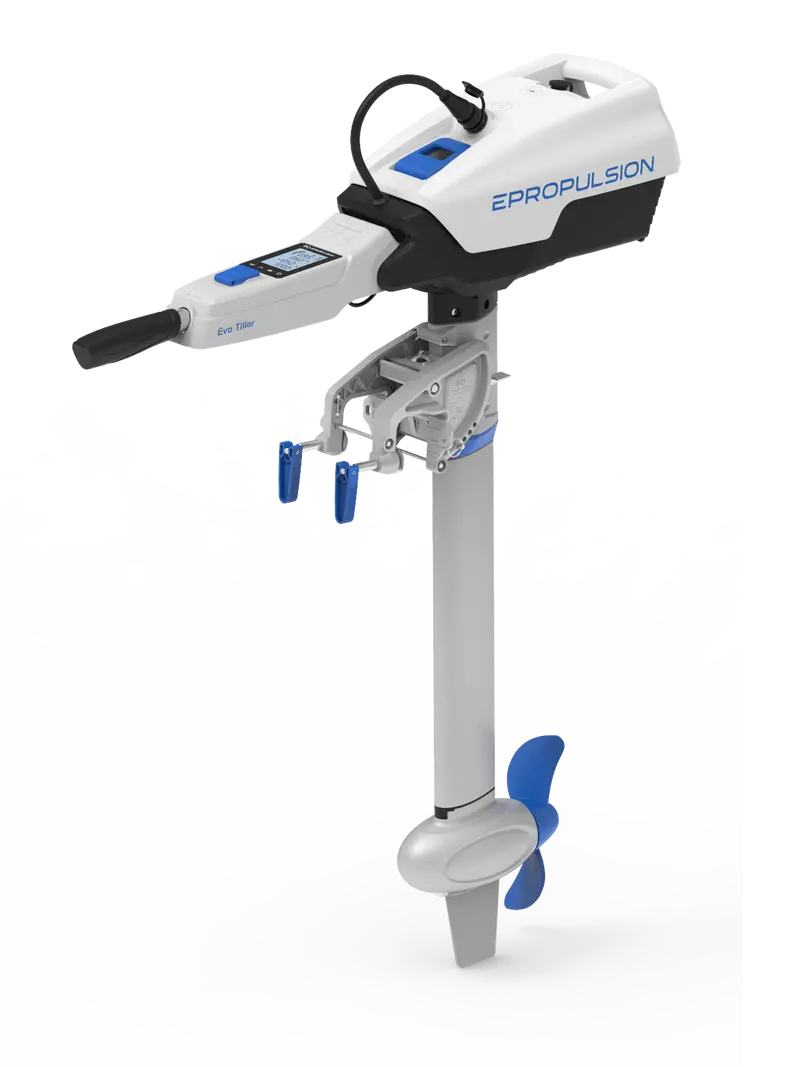

Electric Outboard Motor Epropulsion Spirit 1.0 Evo 3HP 1kW (Motor only)
Spirit 1.0 Evo is a portable 3HP electric outboard made for dinghies, fishing boats, and sailboats. It features a 1276Wh large integrated lithium battery for long range. The hydrogeneration function is great for sustainable sailing experience. The safety wristband keeps you safe in case of MOB.
Innovative Battery Technology
Powered by a lightweight 8.7 kg lithium-ion battery with a 1,276 Wh capacity, the Spirit 1.0 is built to perform in all conditions. Engineered for durability, the buoyant battery even floats, giving you peace of mind on the water. With enough energy for a full day’s adventure, you can easily swap the integrated battery for extended range, or recharge on the go with solar power while you cruise.
Hydrogeneration
Spirit 1.0 Evo is the first-ever electric outboard that features hydrogeneration. ePropulsion pioneers in the innovation of electric outboard motors and we dedicate ourselves to sustainable sailing.
The Evo stands out with its hydrogeneration capability, enabling the battery to recharge while sailing under the right conditions. This innovative feature enhances its appeal for eco-conscious sailors. Additionally, the Spirit 1.0 Evo supports remote control operation, offering flexibility for various steering setups and an enhanced boating experience.
Lightweight, quiet, and maintenance-free, the Spirit 1.0 Evo is an ideal solution for sustainable, efficient, and convenient electric propulsion.
The hydrogeneration data is based on real tests with the anti-ventilation plate installed.
Specifications
| Spirit 1.0 Evo | Spirit 1.0 Evo Remote | |
| Power | 1 kW (3HP equivalent) | 1 kW (3HP equivalent) |
| Standard Battery | Spirit Battery Plus, 1276 Wh li-ion polymer | Spirit Battery Plus, 1276 Wh li-ion polymer |
| Input Voltage | 39V – 60V | 39V – 60V |
| Motor Weight* | 11.3 kg / 24.9 lbs | 10.6 kg / 23.4 lbs |
| Battery Weight | 8.7 kg / 19.2 lbs | 8.7 kg / 19.2 lbs |
| Standard Charging | 8.5 Hrs | 8.5 Hrs |
| Fast Charging | 3.5 Hrs | 3.5 Hrs |
| External Battery | Yes, and E-Series Battery recommended | Yes, and E-Series Battery recommended |
| Propeller | 11″ × 5.8″ 2-blade composite propeller | 11″ × 5.8″ 2-blade composite propeller |
| Trim / Tilt Angle | 0°, 7°, 14°, 21° / 85° | 0°, 7°, 14°, 21° / 85° |
| Shaft Length | Short, Long | Short, Long |
| Control | Evo Tiller | Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control |
| Hydrogeneration | Yes | Yes |
| Motor | Brushless DC motor | Brushless DC motor |
| Direct Drive | Yes | Yes |
| Maintenance-Free | Yes | Yes |
*The weight is measured with the short shaft version.
Performance
At the core of Spirit 1.0 Evo electric outboard motor, it’s a 1kW BLDC motor, equivalent to 3HP.
| Power (W) | Speed (mph / kph) | Runtime (hh:mm) | Range (mile / km) |
|---|---|---|---|
| 35 | 2.2 / 3.5 | 36:25 | 80 / 129 |
| 65 | 2.7 / 4.3 | 19:35 | 53 / 85.3 |
| 125 | 3.5 / 5.6 | 10:00 | 35 / 56 |
| 250 | 4.4 / 7.1 | 5:00 | 22 / 35.5 |
| 500 | 5.3 / 8.5 | 2:30 | 13.3 / 21.3 |
| 750 | 5.7 / 9.2 | 1:40 | 9.5 / 15.3 |
| 1000 | 6.2 / 10 | 1:15 | 7.8 / 12.5 |
*The performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.
With one charge, you can go 22 miles at 4.5 mph, or go fishing all day long at trolling speed.
Designed for Portability
Spirit 1.0 Evo outboard with battery is portable & easy to transport. It would be a pleasure to have Spirit 1.0 Evo in your gear list when preparing a trip.
Digital Operation
Electric outboard motors are easy to operate and keep you informed of operation status.
Digital Display
You have access to real-time power, remaining runtime, battery level, operating voltage, etc.
Electric Start
Press one button and you’re ready to go. No more tiring pull cord start.
Magnetic Kill Switch
Stop the motor in an emergency and keep you safe.
Stepless throttle changing
The throttle hand feel is clear, smooth and enjoyable.
Max Power Output Adjustment
With a smaller full throttle power, it’s safer for kids and rental boat
Friendly to the Left-handed
Swap propulsion between turning throttle clockwise and anticlockwise
Both the Plus and Evo models are compatible with ePropulsion’s E-Series batteries, allowing for extended runtime and flexibility. Optional solar charging accessories are available for on-the-go recharging, enhancing the sustainability of your boating adventures.
Shaft Length Recommendation
| TRANSOM HEIGHT | SHAFT LENGTH |
|---|---|
| 30-40cm / 11.8-15.7 inches | Extra Short* |
| 40-50cm / 15.7-19.7 inches | Short |
| Higher than 50 cm / 19.7 inches | Long |
* Extra Short only available on Plus model.
** This shaft length chart is for your reference only.
