Description

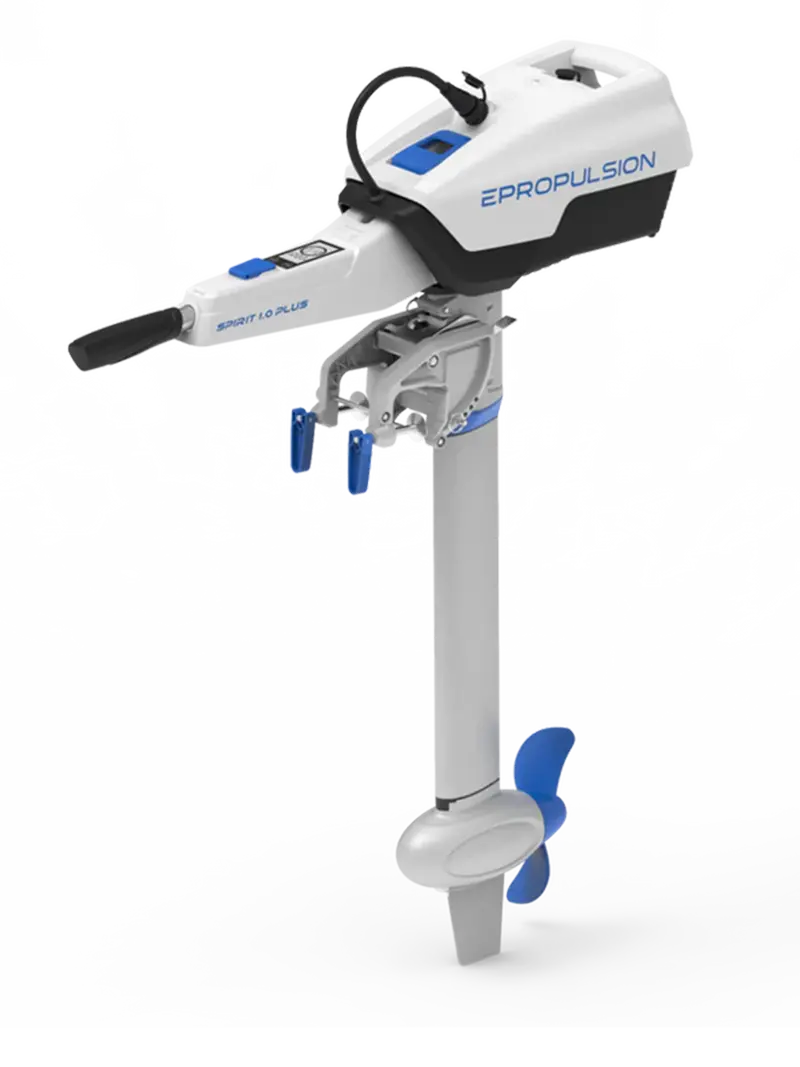

Introducing Electric Outboard Motor Epropulsion Spirit 1.0 Plus 3HP 1kW (Motor only)
Spirit 1.0 Plus is a portable 3HP electric outboard made for dingies, fishing boats, sailboats and tenders. It features a 1276Wh large integrated lithium battery for long range. It’s nimble, lightweight, and clean power.
With one charge, you can go 22 miles at 4.5 mph, or go fishing all day long at trolling speed.
What’s Inside?
- Motor Box: 43″ x 20″ x 12″
- SPIRIT 1.0 Plus Electric Outboard Motor
- Tiller Handle – Throttle Control and Steering
- Composite High-Performance Propeller
- 180 watts charger for Spirit Battery Plus
- User manual, warranty card, x2 magnetic kill switches, 2 pins to lock steering
- Battery Box: 20″ x 14″ x 12″
Specifications
| Spirit 1.0 Plus | |
| Power | 1 kW (3HP equivalent) |
| Input Voltage | 39V – 60V |
| Standard Battery | Spirit Battery Plus, 1276 Wh li-ion polymer |
| Motor Weight* | 10.6 kg / 23.4 lbs |
| Battery Weight | 8.7 kg / 19.2 lbs |
| Charing Time | Standard charger: 8.5 Hrs Fast charger: 3.5 Hrs |
| External Battery | Yes, and E-Series Battery recommended |
| Propeller | 11″ × 5.8″ 2-blade composite propeller |
| Trim / Tilt Angle | 0°, 7°, 14°, 21° / 70° |
| Shaft Length | Extra Short, Short, Long |
| Motor | Brushless DC motor |
| Direct Drive | Yes |
| Maintenance-Free | Yes |
* The weight is measured with the short shaft version.
At the core of Spirit 1.0 Plus electric outboard motor, it’s a 1kW BLDC motor, equivalent to 3HP.
Performance
| POWER (W) | SPEED (MPH / KPH) | RUNTIME (HH:MM) | RANGE (MILE / KM) |
|---|---|---|---|
| 35 | 2.2 / 3.5 | 36:25 | 80 / 129 |
| 65 | 2.7 / 4.3 | 19:35 | 53 / 85.3 |
| 125 | 3.5 / 5.6 | 10:00 | 35 / 56 |
| 250 | 4.4 / 7.1 | 5:00 | 22 / 35.5 |
| 500 | 5.3 / 8.5 | 2:30 | 13.3 / 21.3 |
| 750 | 5.7 / 9.2 | 1:40 | 9.5 / 15.3 |
| 1000 | 6.2 / 10 | 1:15 | 7.8 / 12.5 |
* The performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.
Digital Operation
Electric outboard motors are easy to operate and keep you informed of operation status.
Digital Display
You have access to real-time power, remaining runtime, battery level, operating voltage, etc.
Electric Start
Press one button and you’re ready to go. No more tiring pull cord start.
Magnetic Kill Switch
Stop the motor in an emergency and keep you safe.
Stepless throttle changing
The throttle hand feel is clear, smooth and enjoyable.
Max Power Output Adjustment
With a smaller full throttle power, it’s safer for kids and rental boat
Friendly to the Left-handed
Swap propulsion between turning throttle clockwise and anticlockwise
